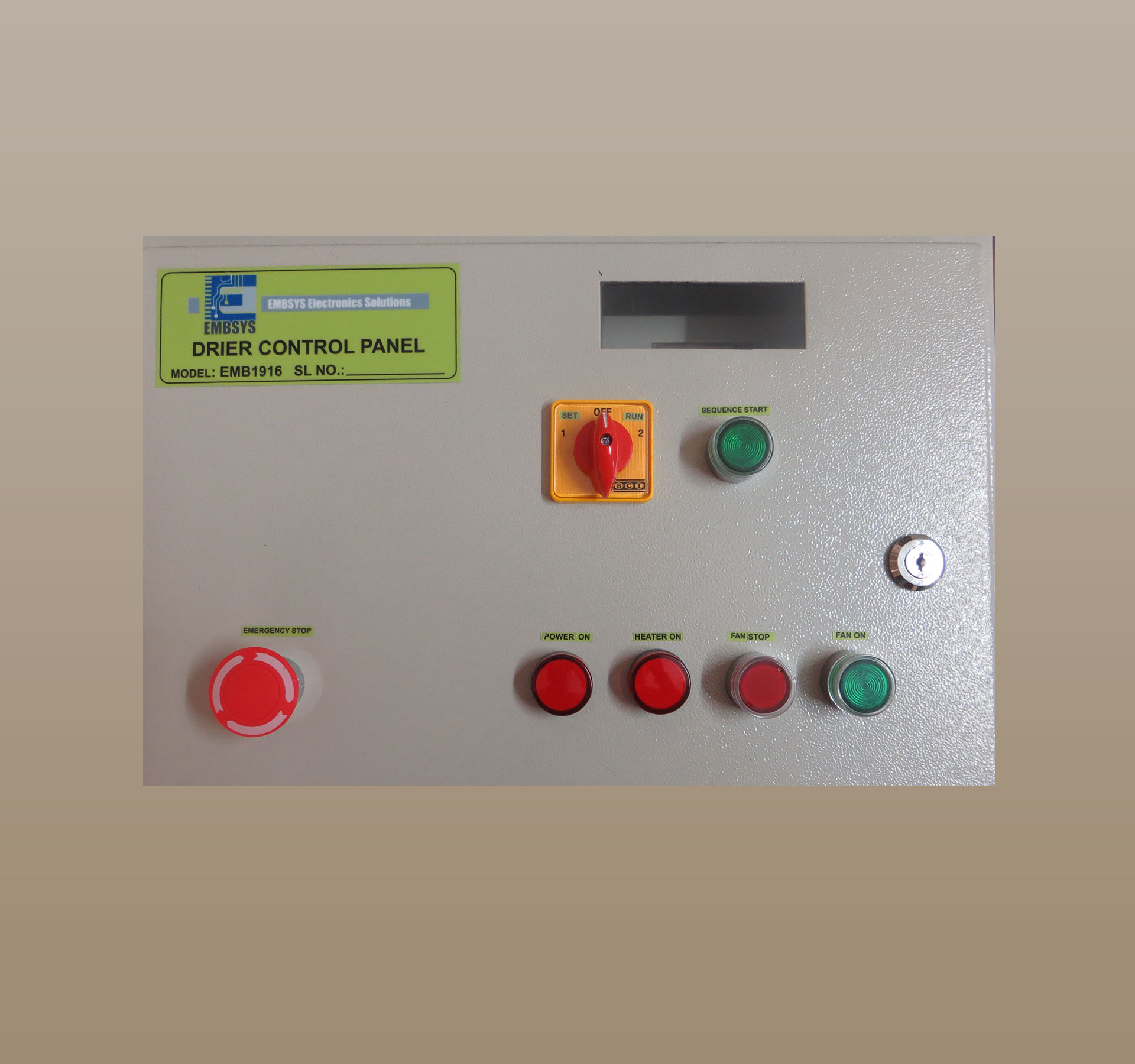

Drier Unit Controller

3 review(s)
Drier Unit Controller, This Application is technologically advanced production unit.
  1. Timer Unit : Programmable unit
  2. GSM/GPRS Unit : Configurable unit
  3. Output : Fan control and heater control
  4. Permissive : Damper position
  5. Emergency STOP : Push button operated
  6. Operation Modes : SET mode and RUN mode
  7. Sensor Interfaces : RTD/THERMISTOR/THERMOCOUPLE/4 to 20 mA current optional
  8. Display : 8 digit,7 SEGMENT LED
  9. Operating voltage :AC 240V +/- 20 %
  1. Processor :32 bit ARM cortex micro controller
  2. Input Unit :16 keys KEYPAD
  3. Display :8 digit, 7 SEGMENT LED DISPLAY
  4. Digital Inputs :8 nos. Optically isolated
  5. Analog Inputs :4 nos.Voltage inputs (current input optional)
  6. Replay Outputs :4 nos. Potential free change over contact,Contact rating 230 vAC @ 2 Amps
  7. Serial Communication : RS232 - 3 nos. , RS485 - 1 no.
  8. Protocol : MODBUS-RTU (can be customized)
  9. Operating Voltage :12V DC
  10. Current Consumption :300 mA
  11. Operating Temperature :0 to 55 Deg.c
  12. Mechanical Dimensions :180x195x52 mm
  13. Mounting Arrangements :table top / DIN rail option
  1. Processor :16 bit ARM cortex micro controller
  2. GSM/GPRS Modem :Quad-band 900/1800/850/1900MHz
  3. Sim Card Holder :Available
  4. Accessories :5db ANTENNA
  5. Battery Backup :as per user requirement option
  6. Digital Inputs :4 nos. Optically isolated
  7. Analog Input :4 nos. Optional
  8. Indications:power LED and Network LED
  9. Serial Communication :RS232 - 1 no. RS485-1 no.
  10. Protocol :MODBUS-RTU (can be customized)
  11. Operating Voltage :12V
  12. Current Consumption :300 ma
  13. Operating Temperature :0 to 55 Deg.c
  14. Mechanical Dimensions :155x140x52 mm
  15. Mounting Arrangements :table top / DIN rail option
