Intelligent Gsm Gprs Digital Monitoring

5 review(s)

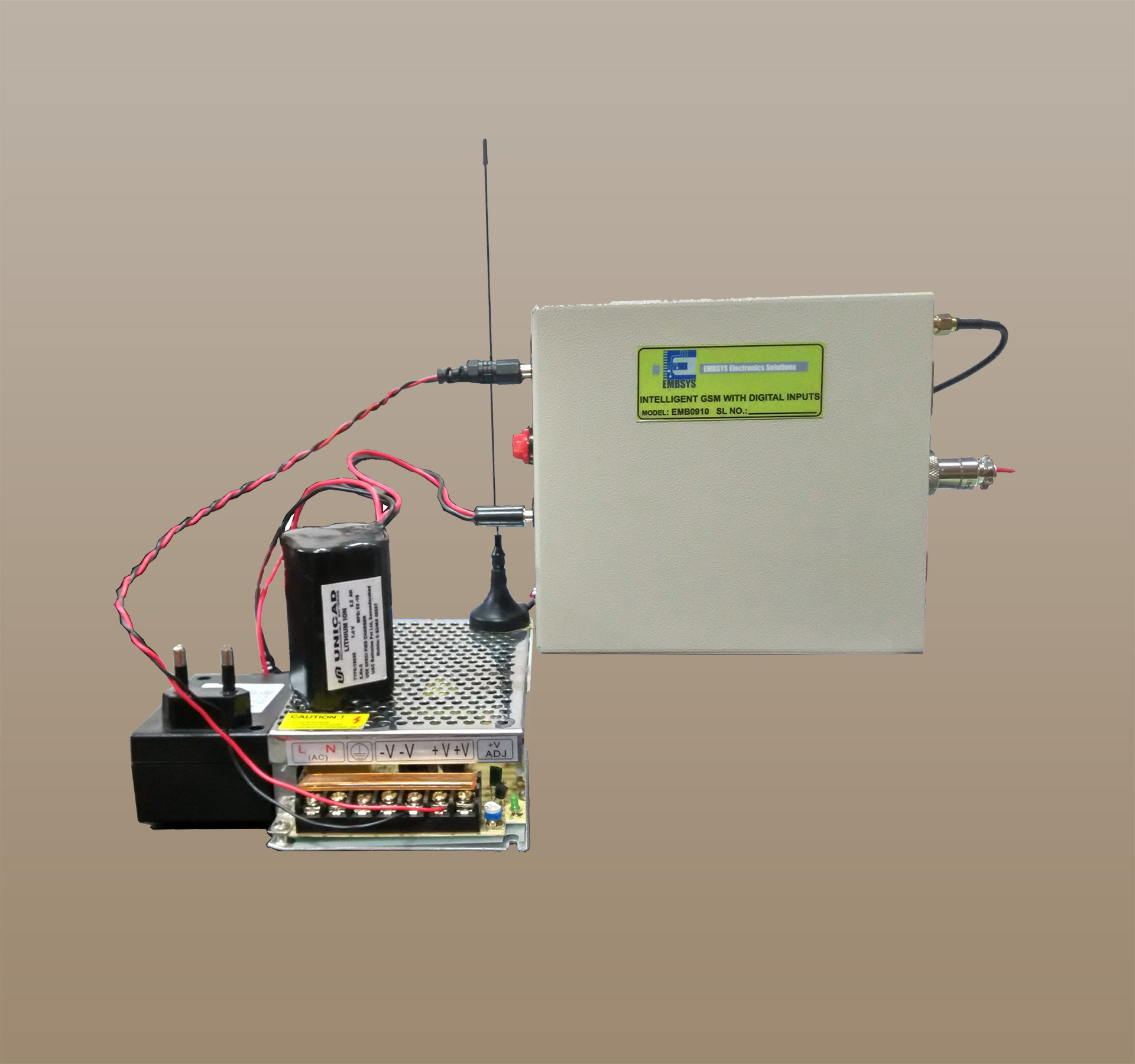

EMB0910 Intelligent GSM / GPRS Modem With Digital Inputs is an embedded platform designed for management systems, combining a state-of-art processing ARM core and GSM/GPRS modem with power supply, interfaces to in vehicle or remote locations equipment and external GSM antenna. Three digital inputs are used to read status of different sub modules with NC / NO potential free contacts. The device can be equipped with internal battery.

Power supply : 230V AC ,50Hz
Battery Backup : 24 hours
Frequency Range : Quad-frequency 900/1800/850/1900HMz
SIM Card : Supporting 3V SIM Card
Antenna : 50 Ω SMA Antenna interface
Digital Input : 3 digital inputs (Dry contact)
LED Indications : Power and battery status
Temperature Range : -30°C ~ +70 °C
Humidity range : Relative humidity 95%
Exterior Dimension : 120×80×25mm
Weight : 300g

SMS alarm and control
Pulse logging of rain gauges
Water or electrical meters
Automated meter reading
ON/OFF control irrigation

AC (230 V AC , 50 Hz)
AC Power fail (input to device) status DI
Motor ON status DI
Timer controlling the motor starter status DI
Battery voltage indication
Cellular signal strength to software
Over the air firmware update feature
Automatic restart on power restoration
Over voltage and short circuit protection
